Features include:

• 30cm (12") carding width
• Batt weight up to 135g (4¾oz)
• 72-point teeth (PPSI) on the main drum and 36-point cloth on the feed-in drum helps keep the feed-in drum clean
• Two 24-volt motors with geared drive
• Infinitely variable speed control for both drums plus a ratio control to vary the in-feed speed
• Acrylic safety covers over the drums and the drive belts, and a magnetic safety switch, for safe use

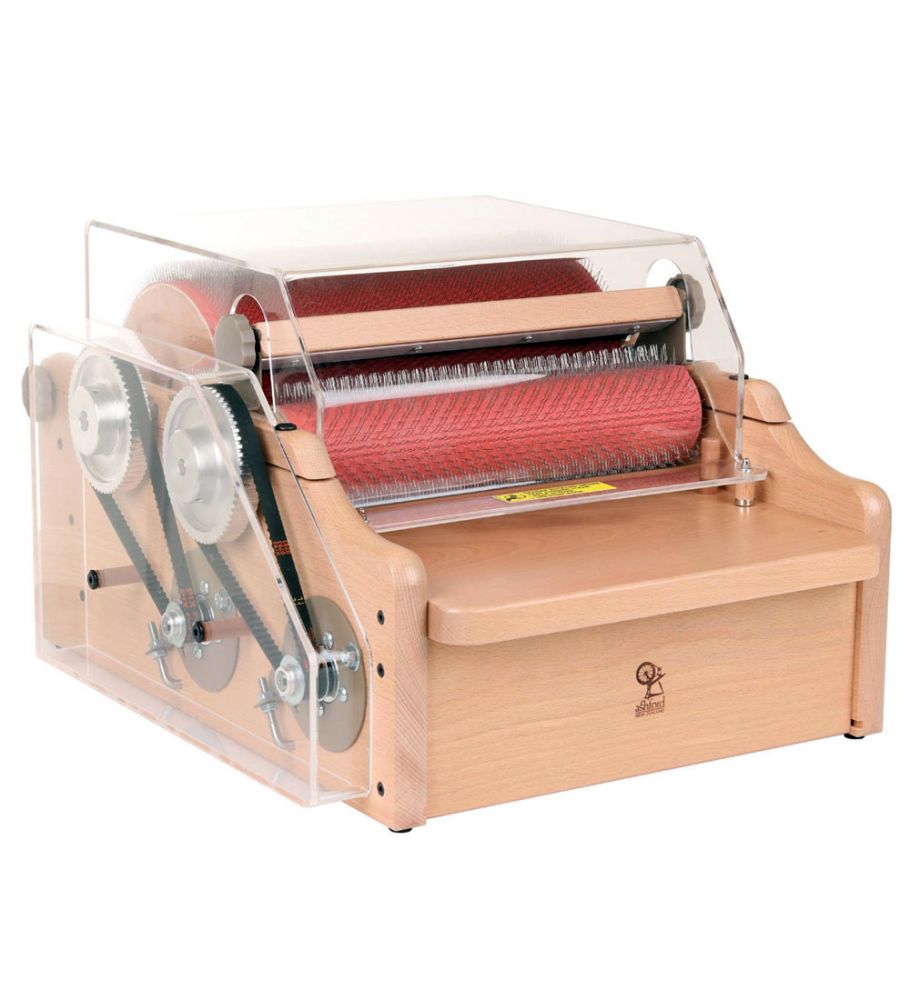

• Stepped tooth non-slip drive belts with belt tensioners
• On/off foot switch for hands-free operation
• For fibre removal, the drums rotate at 10% carding speed when in reverse
• Packer brush, doffer (awl), cleaning brush, dizzing stick, on/off foot switch and 24-volt mains transformer
• Carding drums can be removed to clean bearings
• Large 21 x 31cm (8¼ x 12") feed-in tray

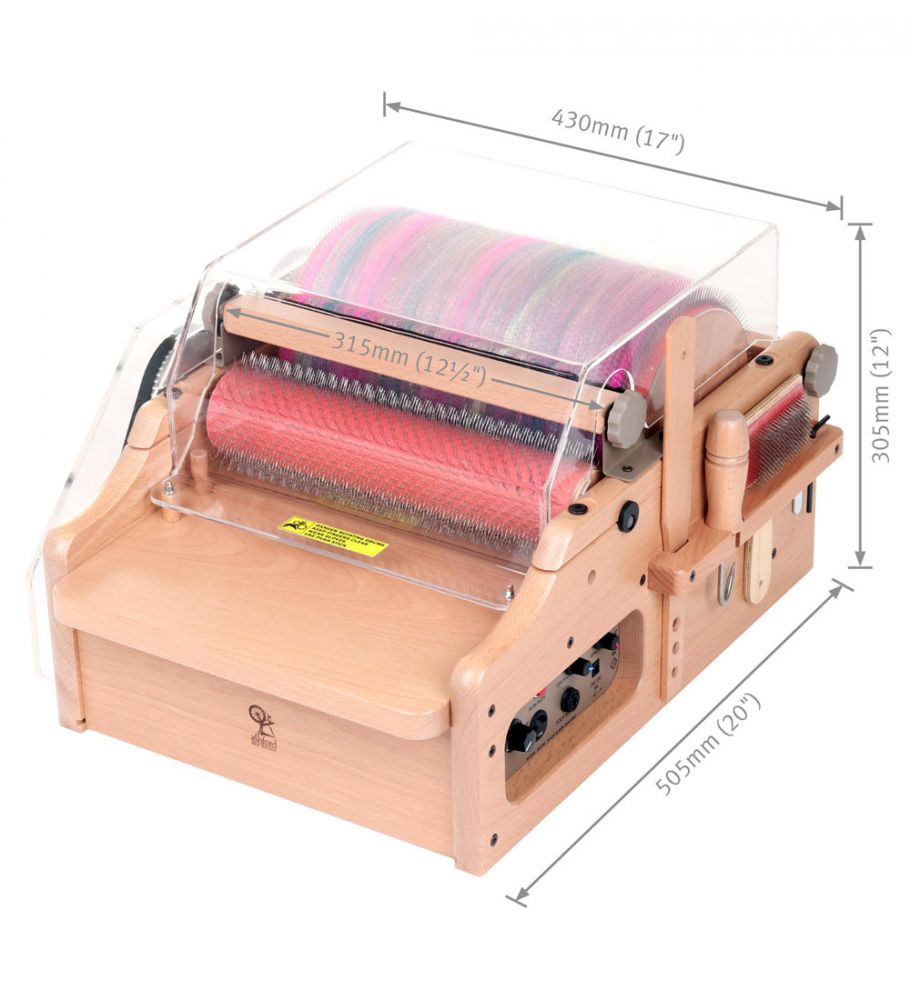

• Size 51 x 40 x 32cm high (20 x 15¾ x 12½")
• Manufactured in New Zealand from Silver Beech hardwood with a lacquered finish
• Net weight 15.2kg (33½lbs)

Product Code: ASHA78   CONTACT US FOR AVAILABILITY
