4 Shaft Table Loom

unique folding design

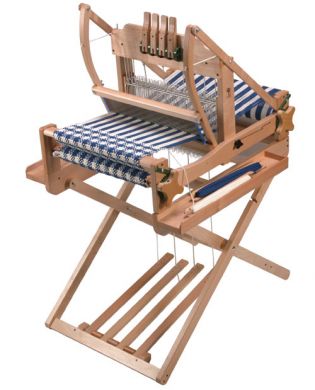

Extra wide for weaving blankets, wraps, dress fabrics and more on Ashford's 80cm/32" wide 4 Shaft Table Loom. The overhead beater with automatic bounce-back ensures you'll always beat evenly. Rubber feat on the four corners keep the loom from slipping while you work. Shafts are operated by lifting handles. An optional stand and foot-treadle kit converts the table loom into a floor loom for faster weaving. Loom folds down to a height of just 20cm making it easier to store or transport. Comes as a kit requiring assembly.
technical
Shaft Number: 4
Weaving Width: 80cm/32"
Reed: 10dpi
Heddle Type: Texsolv
Weight: 7kg
Loom Folds: Yes
Dimensions: 80cm wide x 80cm long x 48cm (20cm closed) high
Construction: New Zealand Silver Beech Hardwood
Wood Finish: Lacquer (clear varnish)
what's included
1 x 4 Shaft Table Loom (80cm/32") - Kit (with assembly instructions)
1 x 10dpi Stainless Steel Reed (80cm/32")
2 x Shuttles
1 x Texsolv Heddle Set
2 x Threading Hooks for Reed & Heddles
1 x Loom Warping Guide (instructions)
optional extras
Table Loom Stand & Treadle Kit
Raddle
Second Back Beam
6, 8, 12, 16dpi Stainless Steel Reeds
Ashford Book of 4 Shaft Weaving
recommendations
Deciding between a 4 or an 8 shaft loom? Keep in mind that at a later date you can purchase a Plus 4 Later Kit to make the conversion from 4 to 8 shafts.
ordering information
New Zealand Customers: Arrival time, 2-5 days after your order/payment is received.
International Customers: This loom may only be shipped to a New Zealand address, in compliance with Ashford's policies.

USA shoppers: Buy this product direct from Paradise Fibers

Product Code: ASHX72
